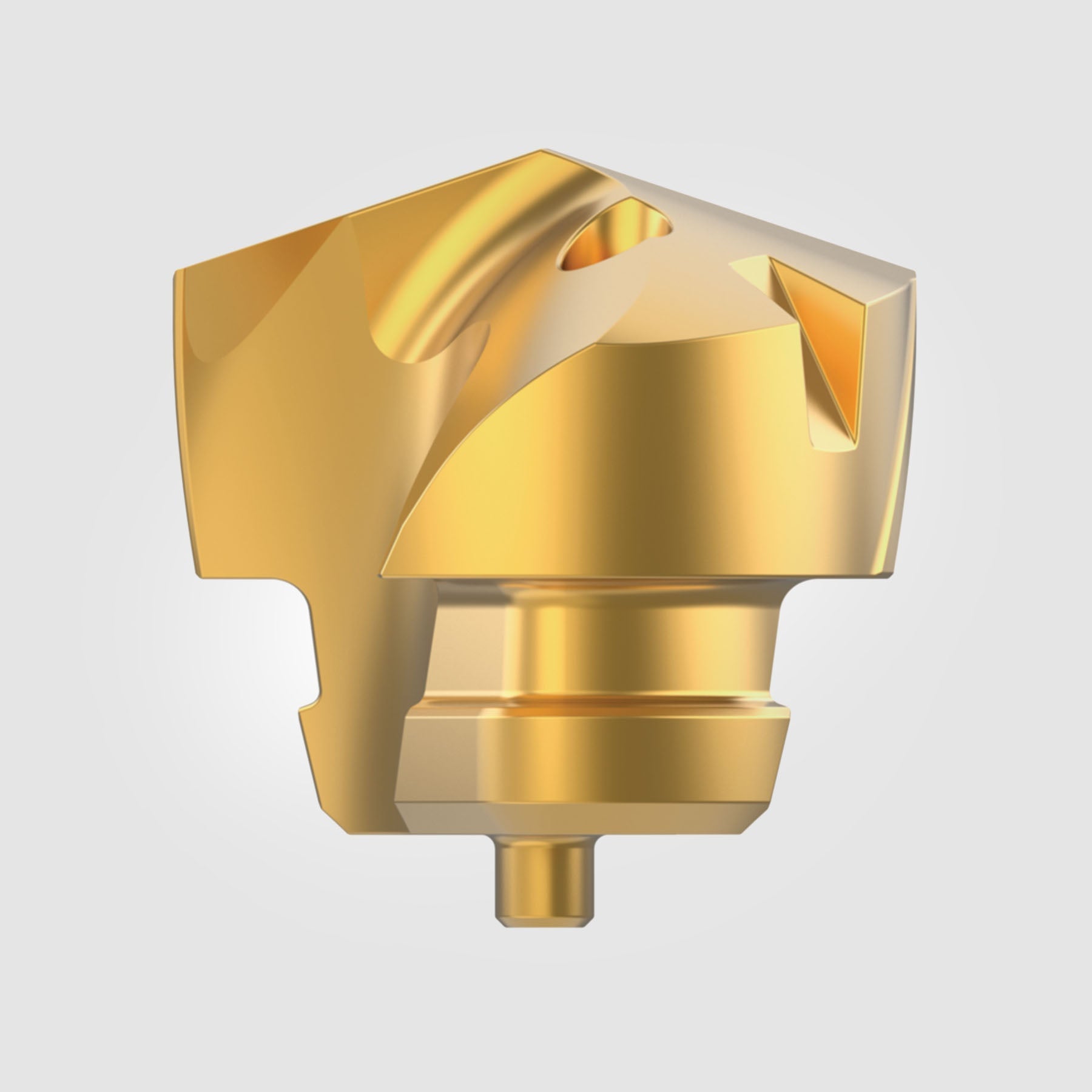

TITAN’s Go-To Insert!
- For universal applications in steels, stainless steel and cast iron.
- Works as pilot drill point for deep-hole applications.
- GOdrill geometry with 140° point angle.
- Excellent centering capabilities and low axial forces.
Materials
- Primary: Stainless Steel, Steel
- Secondary: Cast Iron, High-Temp Alloys
Insert Data
- Quantity: 1
- Grade: KC7325
- Material Type: FERT
- Insert Size: U
- Drill Diameter (Inch): 0.6339″
- Drill Diameter (Metric): 16.100mm
- Overall Length (Inch): 0.658″
- Overall Length (Metric): 16.700mm
- Drill Point Length (Inch): 0.104″
- Drill Point Length (Metric): 2.630mm
Country of Origin is subject to change.
Safety data sheets upon request.
